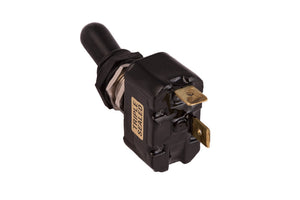

(MOM ON)-OFF-(MOM ON) Triple Sealed Toggle Switch – Metal Lever
spdt-momentary-toggle-switch-marine-offroad
triple-sealed-momentary-toggle-switch-12v

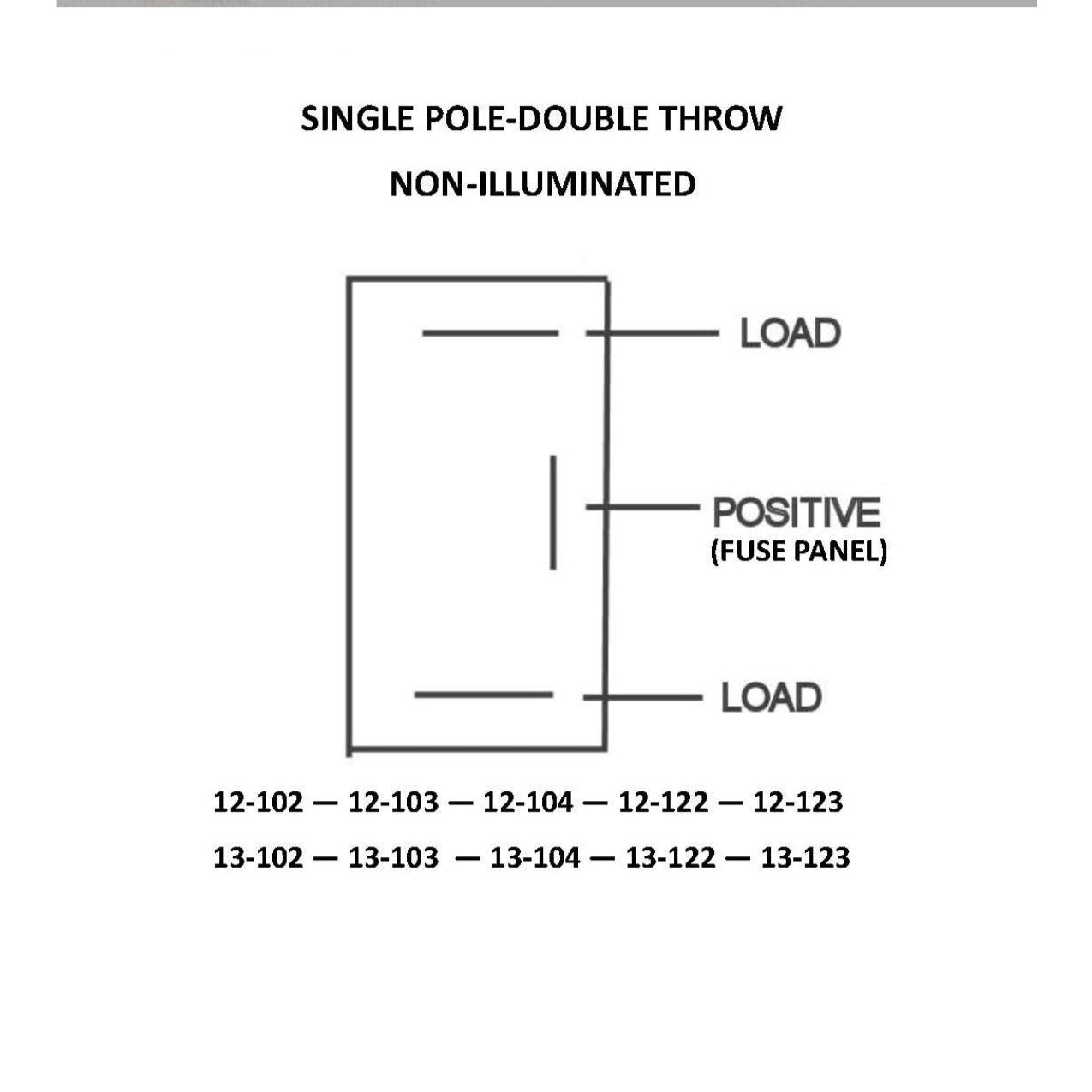

K4 Switches wiring diagram for single pole-double throw non-illuminated switch on a white background.

(MOM ON)-OFF-(MOM ON) Triple Sealed Toggle Switch – Metal Lever

Shipping calculated at checkout.

The K-Four (MOM ON)-OFF-(MOM ON) triple sealed toggle switch with metal lever is built for reliable operation in harsh environments such as off-road vehicles, marine systems, trucks, and custom 12-volt wiring projects.

This 20-amp SPDT momentary toggle switch features a triple sealing system to help protect internal components from dust, moisture, and vibration. The combination of an acrylic protective coating, T5 vapor seal, and rubber lever boot cover makes this switch ideal for demanding installations where durability matters.

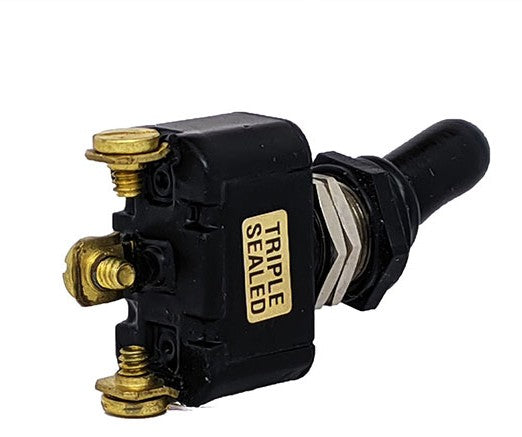

Available with metal tab or screw terminals to fit different wiring setups.

Key Features

• (MOM ON)-OFF-(MOM ON) momentary toggle switch
• Rated for 12V / 20 Amp electrical systems
• Triple sealed design for protection from dust and moisture
• Durable metal lever construction
• Lever seal O-ring for additional environmental protection
• Silver internal contacts for reliable conductivity
• Available with metal tab or screw terminals

Common Uses

This momentary SPDT toggle switch is commonly used for:

• Hydraulic controls
• Winch in/out controls
• Trim tabs
• Marine electrical systems
• Off-road accessory control
• Custom automotive wiring projects

Specifications

Voltage: 12V
Current Rating: 20 Amp
Switch Function: (MOM ON)-OFF-(MOM ON)
Circuit Type: SPDT
Terminal Type: .250" Tab or Screw Terminals
Lever Seal: O-Ring
Lever Length: .687"
Mounting Hole: .500"
Contacts: Silver internal contacts
