K-Four Heavy Duty Push Button Momentary Switch (12V – 60 Amp)
The K-Four heavy duty push button momentary switch is designed for reliable operation in automotive, off-road, marine, and custom electrical systems. Rated for 12 volts and 60 amps, this switch is ideal for high-current applications such as starter switches, horn buttons, and auxiliary electrical controls.
Built with a zinc die-cast body housing and silver contacts, this switch provides dependable performance and long service life in demanding environments.

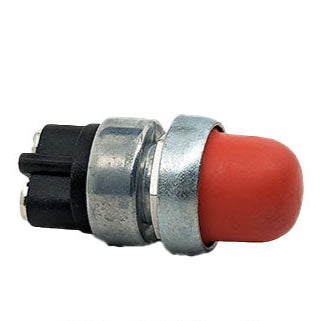

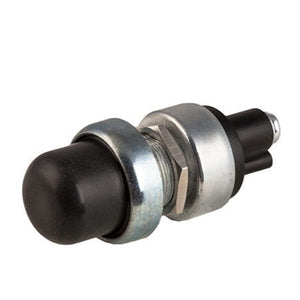

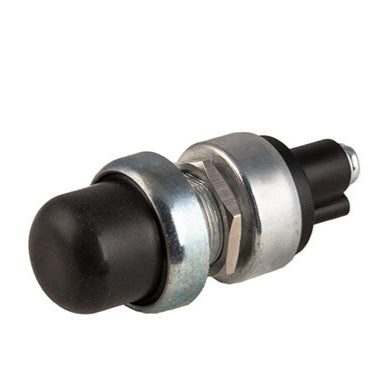

Available with red or black protective covers, it offers both durability and easy identification for different electrical functions.
Key Features
• Momentary ON push button switch
• Rated for 12V / 60 Amp electrical systems
• Durable zinc die-cast body housing
• Silver contacts for reliable electrical conductivity
• Housing rolled over insulated components to seal out dust and moisture

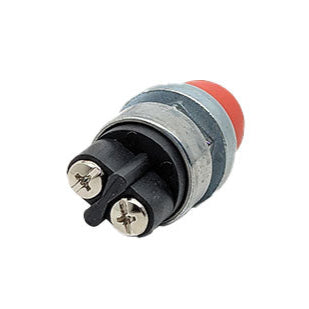

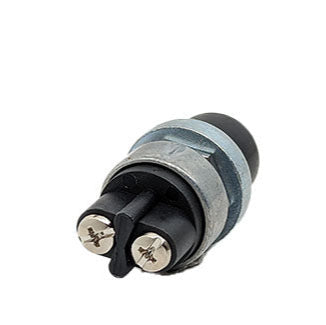

• #8 screw terminals for secure wiring connections
• Available with red or black protective cover
Common Uses
This heavy duty momentary push button switch is commonly used for:
• Starter switches
• Horn buttons
• Auxiliary electrical systems
• Custom vehicle wiring projects
• Off-road vehicle controls
• Marine electrical applications
Specifications
• Voltage: 12 Volt
• Current Rating: 60 Amp
• Switch Type: Momentary ON Push Button
• Housing Material: Zinc Die Cast
• Contacts: Silver
• Terminals: #8 Screw Terminals
• Mounting Hole: .625"
Installation
This switch installs easily using a .625 inch mounting hole and connects using #8 screw terminals, making it suitable for a wide range of switch panels and custom wiring setups.
