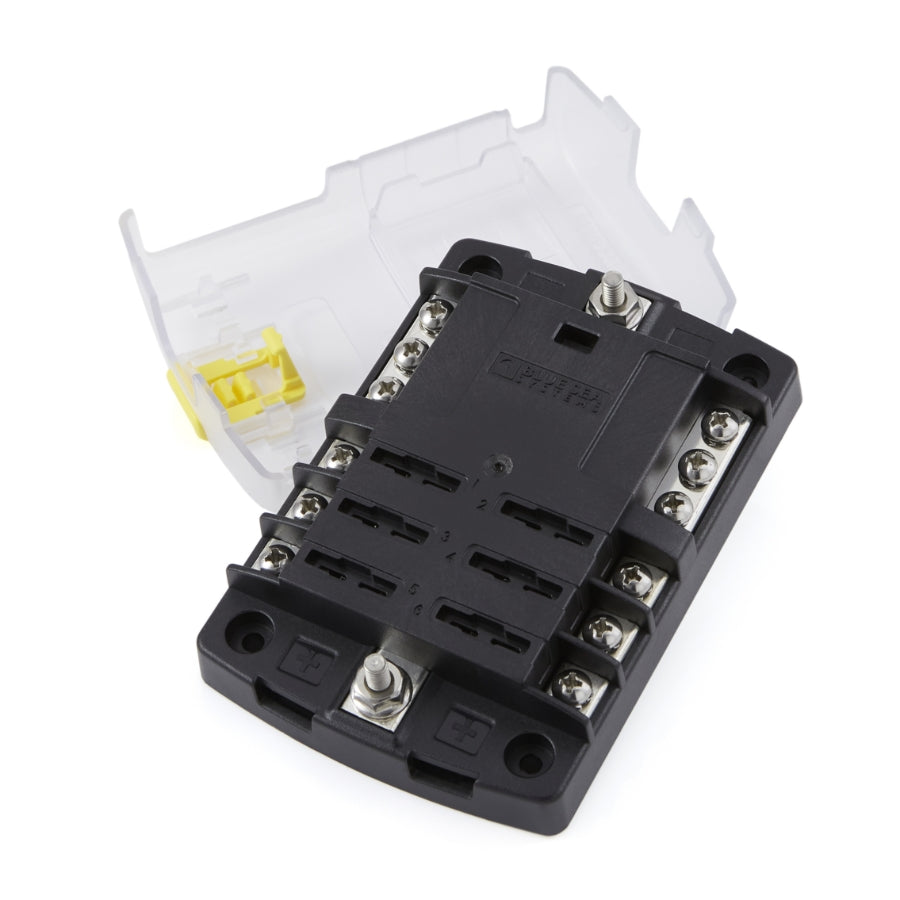

Blue Sea 5025 ST Fuse Block - 6 Circuit With Bussed Ground Circuit
BLUE SEA 5025 ST FUSE BLOCK - 6 CIRCUIT WITH BUSSED GROUND CIRCUIT

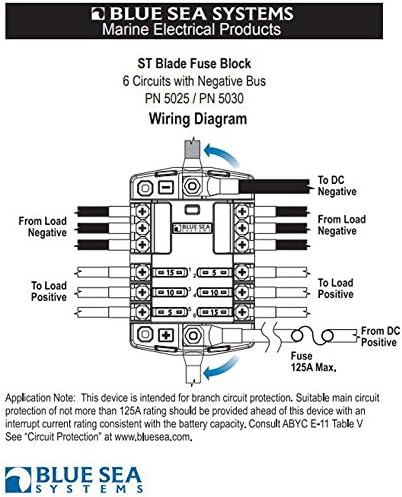

- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits

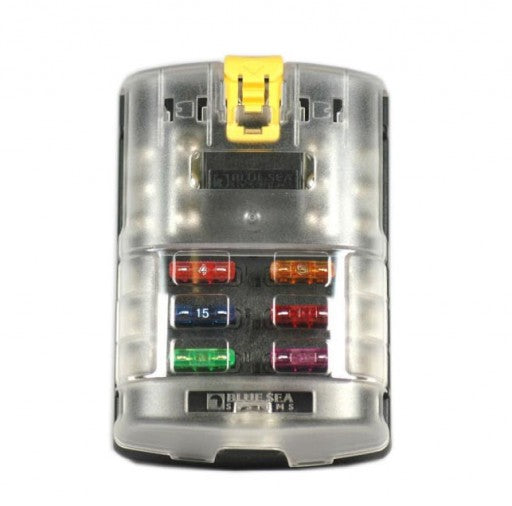

- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
- Fuse block includes 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately

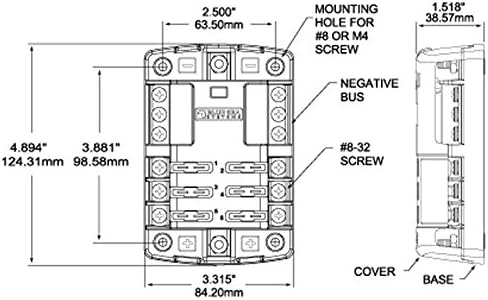

Specifications | |
---|---|
Circuits | 6 |
Maximum Amperage ![]() |
100A per block 30A per circuit |
Maximum Voltage | 32V DC |
Mounting | #8 Screw (M4) |
Negative Bus | #10-32 Stud |
Positive Bus | #10-32 Stud |
Recommended Torque | 24 in-lb (2.71 N·m) |
Screw Terminal Torque | 18 in-lb (2.03 Nm) |
Screw Terminal Type | #8-32 Screws with captive star lock washer |
Weight | 0.55lb (0.25 kg) |
